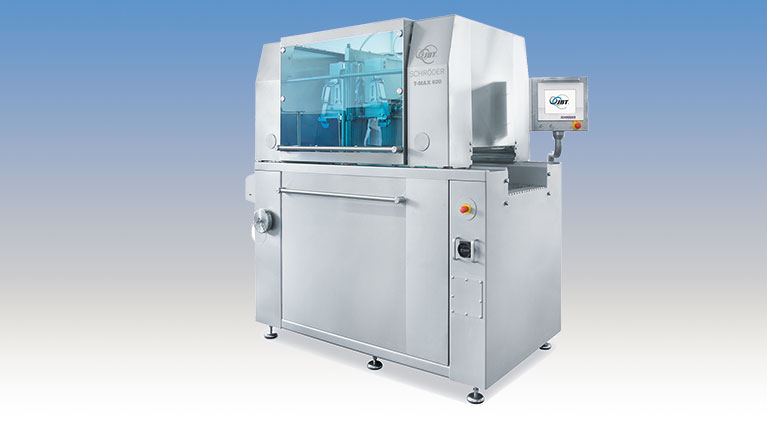

The different fibre structures within a muscle absorb the injected brine in different ways. Brine pockets and inhomogeneous brine distribution must be prevented for high quality requirements.The Schröder TMAX needle tenderizer penetrates the entire muscle. Its blade-like sharpened tips cut through the fibers of the muscle and shorten them in the process. Replacing the injected brine during the fiber process is then possible, the distribution is optimized and the muscle is also perfectly prepared for absorbing the protein during massaging. Depending on the product, the tenderizer can be equipped with single- or double-head and single- or double-blades.

Features & Benefits

  • Faster diffusion of additives
  • Reducing pickle pockets
  • Homogeneous reddening
  • Increased tenderness
  • Shorter massaging and tumbling times


  • Machine length: approx. 2160 mm
  • Machine width: approx. 1400 mm
  • Machine height: approx. 2240 mm
  • Chanal width: 620 mm
  • Walking beam height: approx. 1200 mm
  • Product infeed height: up to 210 mm
  • Number of needles: Depends on the configuration – from 300 to 600
  • Advance: 50/100 mm
  • Cycles per minute: 15 – 60
  • Transported area: 223 m2/h
  • Compressed air: min. 6 bar
  • Weight: approx. 1450 kg
  • Electrical connection: 3Ph/PE; 400/440V; 50/60 Hz
