MAX 3000 / 6000
The first class of massage units for large capacities – highly productive, powerful and reliable, can handle quantities of up to 3000 kg or 6000 kg.Designed in accordance with the in-line principle: Production lines with multiple units make ideal product flow possible without the risk of path crossing or cross-contamination.A wide range of options makes incorporation in any industrial manufacturing process possible. From automatic feeding by means of vacuum loading to program-controlled, intelligent Schröder FLOWMAX belt emptying.
Features & Benefits
- A wide range of enhancements enable the MAX massaging technology to be optimally adapted to the individual manufacturing processes. The MAX loading container optimizes the process cycle through the program-controlled pre-batching of products with marinades (brine) and additives. The vacuum loading enables efficient and hygienic product supply. Manual or automatic discharge is possible.
- In comparison with tumbler technology, less production space and fewer personnel are needed due to the automated processes.
- MAX technology: Increase in productivity
- Up to 50% reduction in processing times compared to the tumbler
- Increase in product yields
- Increase in slicer yields
- Significantly higher levels of system utilization compared to tumbler technology
- Energy savings thanks to increased efficiency
- Rationalization of the technological product flow (line capability)
- Integration in the Schröder VISMAX system
Details

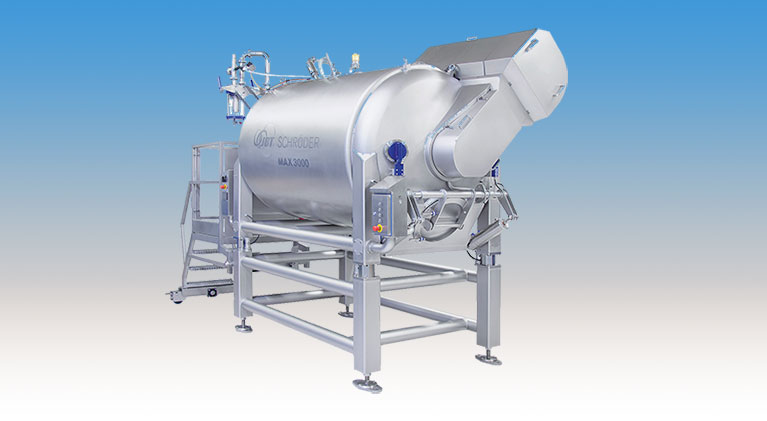

- MAX 3000
- Nominal volume: 3600 Liter
- Fill level: approx. 84%
- Capacity: 3000 kg
- Outer cylinder diameter: approx. 1500 mm
- Machine length, including drive (without vacuum suction unit): approx. 3300 mm
- Machine width: approx. 1720 mm
- Height (with base frame): approx. 2970 mm
- Discharge height: approx. 960 mm
- Compressed air: min. 6 bar
- Electrical connection 3Ph/PE; 400/440V; 50/60 Hz
- MAX 6000
- Nominal volume: 7000 Liter
- Fill level: approx. 86%
- Capacity: 6000 kg
- Outer cylinder diameter: approx. 2000 mm
- Machine length, including drive (without vacuum suction unit): approx. 3375 mm
- Machine width: approx. 2090 mm
- Height (with base frame): approx. 3450 mm
- Discharge height: approx. 960 mm
- Compressed air: min. 6 bar
- Electrical connection 3Ph/PE; 400/440V; 50/60 Hz
Options & Models
- Standard version
- Thermo-plate and external insulation
- SCHRÖDER 10.4“ touch panel
- 100 / 160 m³ / h rotary vane vacuum pump
- Connections for cleaning nozzles
- Connection to customer cooling system (coolant: propylene glycol brine)
- Pneumatic feeding valve
- Large emptying flap
- Options
- Paddle with bulge for delicate products
- Load cells
- Product-specific feeding (lifting tipper, belt, priming tanks)

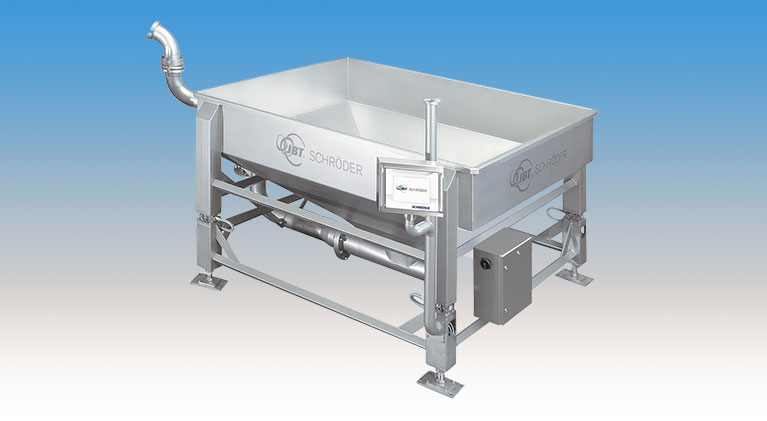

- Feeding container with batching software for producing a batch

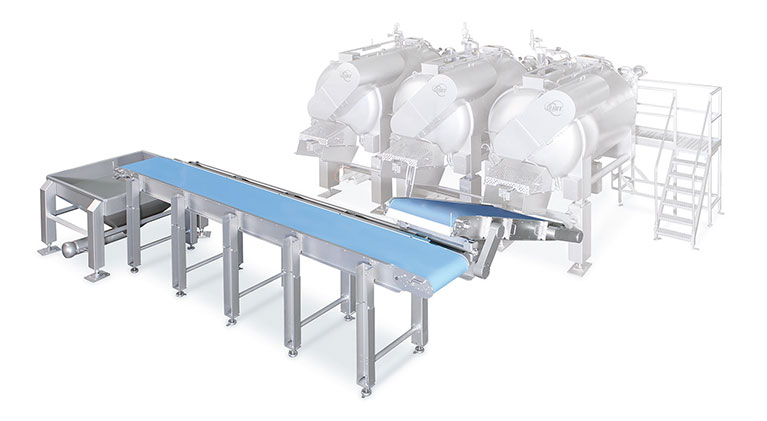

- FLOWMAX automatic conveyor emptying system
- Dosing and spraying unit
