The injector for all-round use

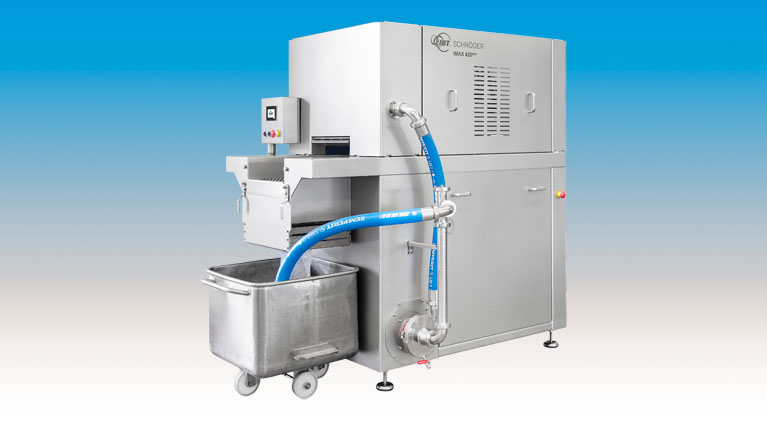

IMAX ECOline 350 / 420 / 620The ECOline series now offers outstanding Schröder quality for small and medium-sized businesses at a favorable entry price and low operating costs in the basic version. These all-round injectors are suitable for a wide range of products. The proven and robust drive concept and the thoughtful hygienic design immediately reveals the typical Schröder injector. A choice of two manifold variants (number and density of needles), always equipped with a needle suspension block makes it suitable for bone-in and bone-less products. Optional available is an additional tenderizer head. Different filter concepts offering the choice between functional simplicity and operating comfort.With three performance classes, running up to 3 t, 4 t and 6 t of fresh product per hour* of fish, meat and poultry products, one will always find the right machine for its production.*Calculated assuming approximately 40 kg/m².Brine tank FT 130The FT 130 brine tank is available as an option. It supplies the IMAX ECOline injectors with up to 130 l of brine. Coarse particles are effectively filtered out using an external rotary filter with a scraper. Brine intake is performed by the stationary suction filter, which can be quickly removed for cleaning purposes using the patented quick-release system. The tank guarantees a high degree of utilization of the brine with a leftover quantity of residual brine of less than ten liters.The cleaning position ensures fast and effective cleaning – there is a mounting to accommodate all parts on the brine tank itself.

Features & Benefits

  • CONTROLLER/TOUCH PANEL – Central operating controls for controlling pressure, speed and injection mode.
  • Optional: Touch panel with available user and recipe management.

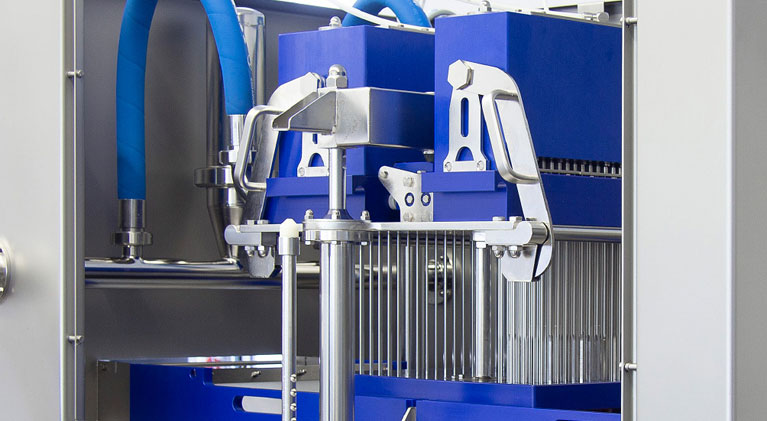

  • INJECTION AND TENDERIZER HEAD WITH RETRACTION BLOCK – For 1- and 2-way injection from 10% to over 90% injection rate. Multiple needle configurations always allow an optimum stitch pattern.
  • BRINE TUBES – Brine-conducting parts outside the machine, special hygienic design of the tubes by pressing.
  • HYGIENIC DESIGN – Good accessibility of all parts for easy cleaning and inspection. Loosening only two screws allows easy opening of the manifold for quick an efficient cleaning.

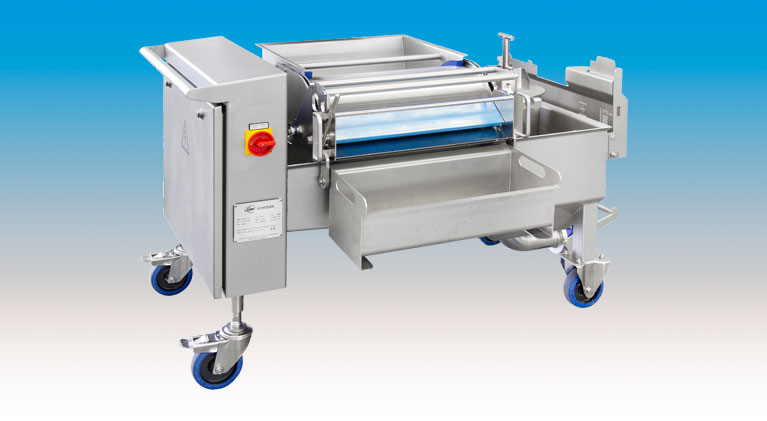

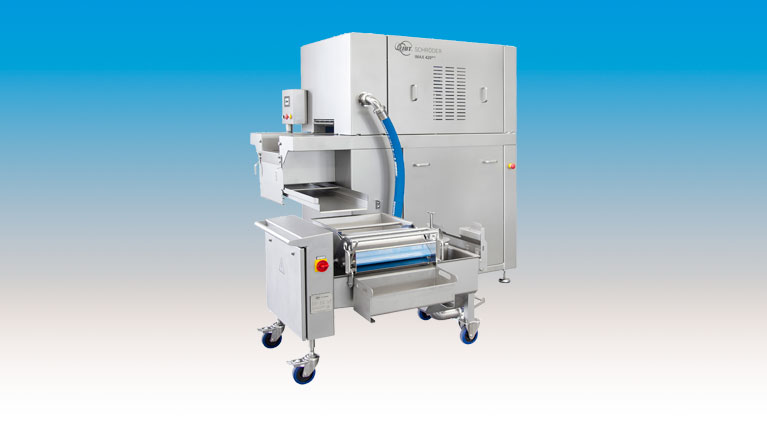

  • BRINE FILTRATION FT130 (OPTION) – with suction filter and rotary drum filter. Standard: three-stage filtration with 1 mm and 2 mm filter plates plus an additional filter net and suction filter.

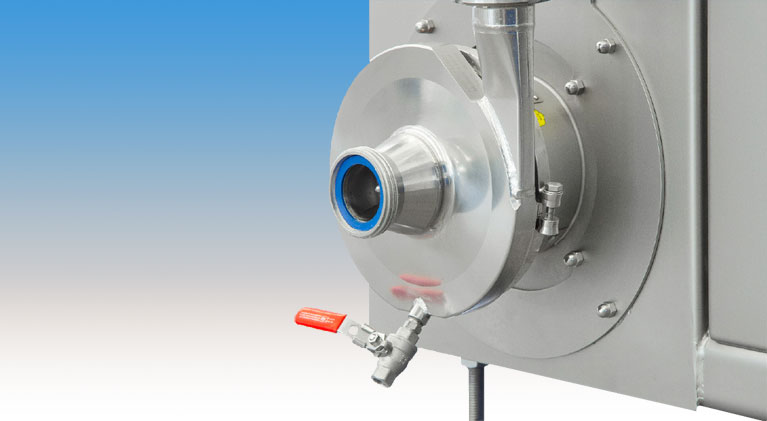

  • PUMP – Powerful 3 kW pump, complete residual brine draining, easy toolless disconnection from the brine tank.

Details

  • IMAX 350ECO
  • IMAX 420ECO
  • IMAX 620ECO
  • Support width
  • 350 mm
  • 420 mm
  • 620 mm
  • Injection area per hour
  • up to 75 m² (60 mm advance)
  • 105 m²
  • 155 m²
  • Capacity (at 40 kg/m²)
  • 3,000 kg
  • 4,200 kg
  • 6,200 kg
  • Cycles per minute
  • 15 – 60
  • 15 – 60
  • 15 – 60
  • Advance
  • 20 / 40 or 60 mm
  • 35 / 70
  • 35 / 70
  • Chanel height
  • 165 / 185 mm (option)
  • 185 mm
  • 185 mm
  • Number of needles
  • 50 / 66 / 102
  • 100 / 141
  • 150 / 213
  • Steaker (option)
  • 26 quattro needles
  • 141 single knives
  • 213 single knives
  • Pressure range
  • 0,5 – 4,5 bar
  • 0,5 – 4,5 bar
  • 0,5 – 4,5 bar
  • Machine length
  • approx. 1850 mm
  • approx. 2160 mm
  • ca. 2160 mm
  • Machine width
  • approx. 950 mm
  • approx. 1250 mm / 2190 mm with FT 130
  • approx. 1450 mm / 2380 mm with FT 130
  • Machine height
  • approx. 2030 mm
  • approx. 2090 mm
  • approx. 2090 mm
  • Loading height
  • approx. 1100 mm
  • approx. 1200 mm
  • approx. 1200 mm
  • Electrical connection
  • 3 Ph/PE; 400/440 V; 50/60 Hz or 3 Ph/PE; 220 V; 50/60 Hz
  • 3 Ph/PE; 400/440 V; 50/60 Hz or 3 Ph/PE; 220 V; 50/60 Hz
  • 3 Ph/PE; 400/440 V; 50/60 Hz or 3 Ph/PE; 220 V; 50/60 Hz
