BRIMAX technology enables the production of all conventional brines in standardized process quality and under the highest hygiene requirements.

The ideal complement for all ECOLINE series injectors is the BRIMAX 350 brine mixer, which is suitable for producing up to 2800 liters of brine per shift for all injection processes. The brine reliably produced with this system can also be used in massaging and tumbling processes.

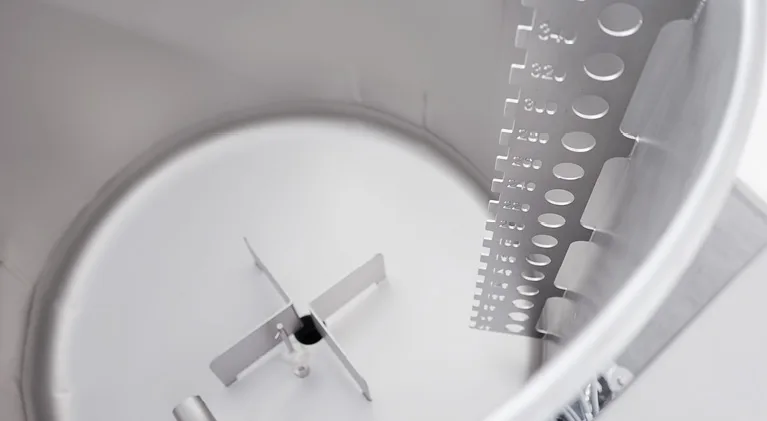

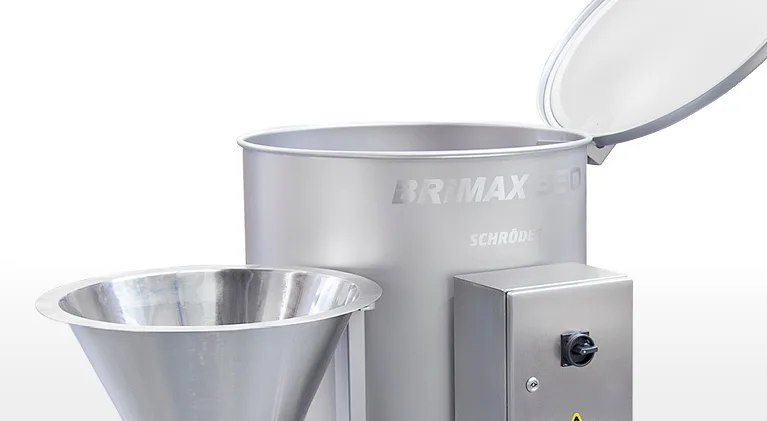

A centrifugal pump with impeller technology mixes water and additives very effectively, ensuring fast and uniform mixing of solid and liquid brine components. The optionally available hopper facilitates the addition of the components and the integrated Venturi system enables lump-free addition of the dry substances.

Features & Benefits

  • Provision of up to 350 liters of brine per hour
  • Consistent quality due to standardized production
  • Compliance with all hygiene requirements
  • High quality processing and powerful pump


  • machine length: 1,130 mm
  • machine width: 1020 mm (without hopper), 1480 mm (with hopper)
  • machine height: 1330 mm (closed), 2110 mm (open)
  • volume: max. 350 liters
  • electrical connection: 3 x Ph/PE 400/440 V, 50/60 Hz
