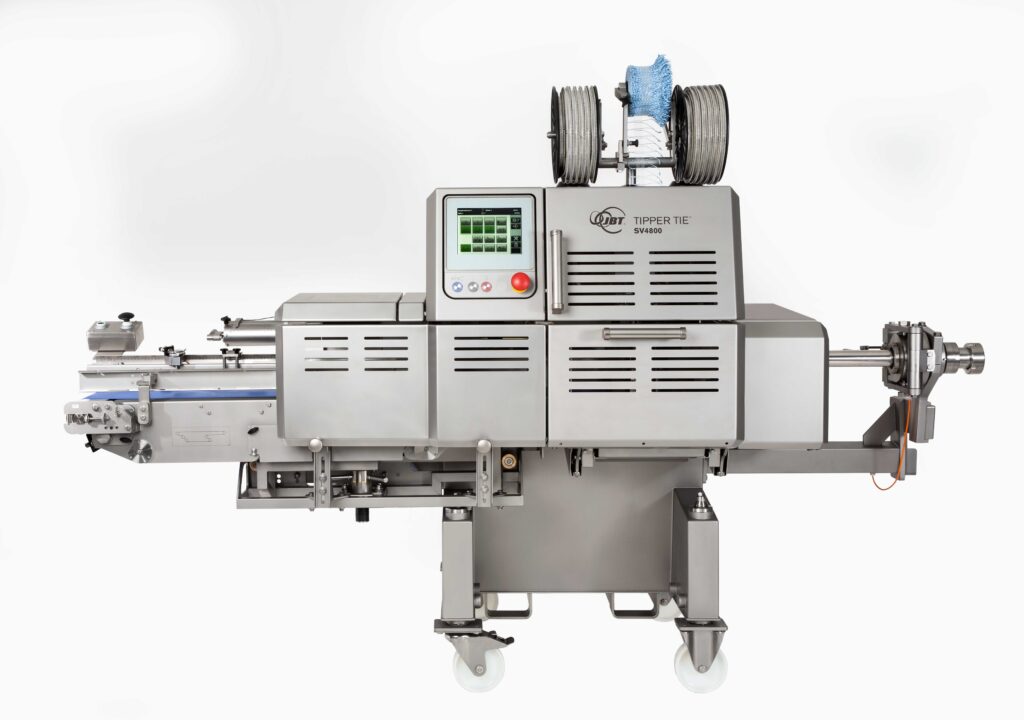

SV4800 is the ideal automatic clipping system for slicer ware and shaped products with diameters from 45mm to 160mm. The result of many years of experience and systematic product development, it processes all known plastic, fibrous, and collagen casings fast and safely.

See Kotivara Case Study here.

Features & Benefits

  • Fastest and quietest spreading voider for U clips, up to 120 portions/minute
  • Speed set in six steps and adaptable to each product
  • Durable stainless steel construction
  • Maintenance and service friendly
  • JBT TIPPER TIE PRoCARE® available

Details

  • Applications – sausage, deli meats, ham, fresh ground meats, whole muscle meats, non-meat proteins, fresh ground fish, surimi/fish sausage paste, raw/frozen/refrigerated pet food, pumpable cheese, soup, sauce, ground fruits and vegetables
  • Spreading voider system enables processing of ham products in all standard artificial casings up to caliber 160mm
  • Clip pressure monitoring system prevents machine damage due to operating errors
  • Quick-release swivel mechanism for casing brake allows fast casing change without moving clipping head, minimizing downtime and maintenance
  • Swivel-mounted discharge conveyor ensures consistent product caliber due to programmable and variable belt speeds

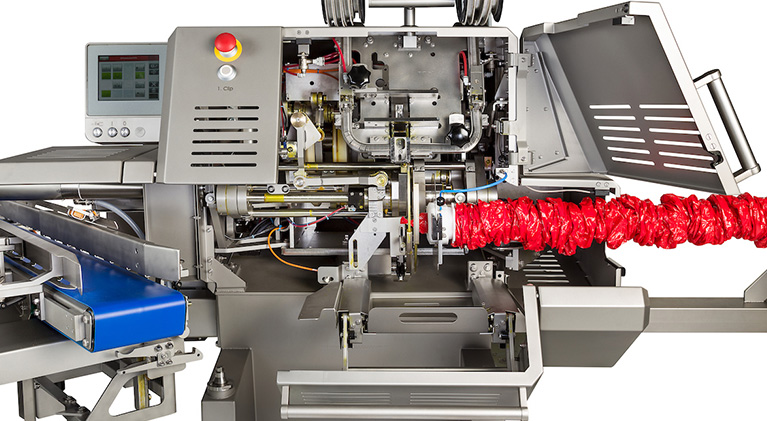

  • Smooth, inclined surfaces and excellent accessibility to all areas enable fast and hygienic cleaning

Options & Models

  • Overspreading device for air-free slack filling up to 250mm
  • Revolving dual horn turret maximizes productivity allowing casing changes with virtually no downtime
  • TagPrint TD60 labeling system is perfect for consequent product traceability
  • Looper for TeQu-S loops

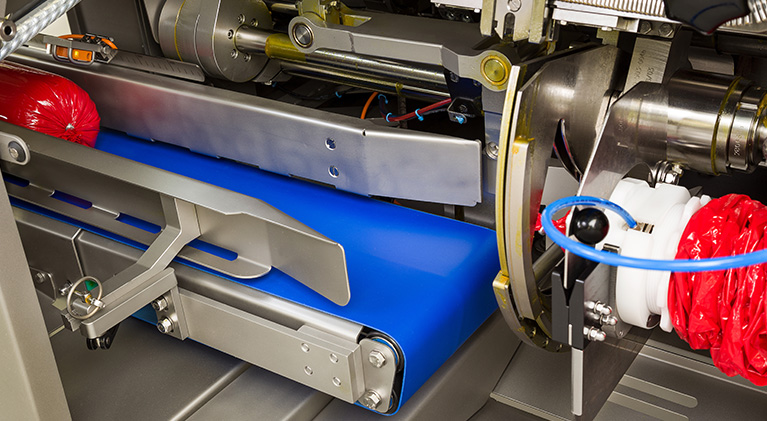

  • Telescope belt conveyor
  • Portioning system with optical monitoring
  • Stuffing horn extension
  • Spool clips
  • Casing end switch
  • Start-stop switch at belt conveyor end

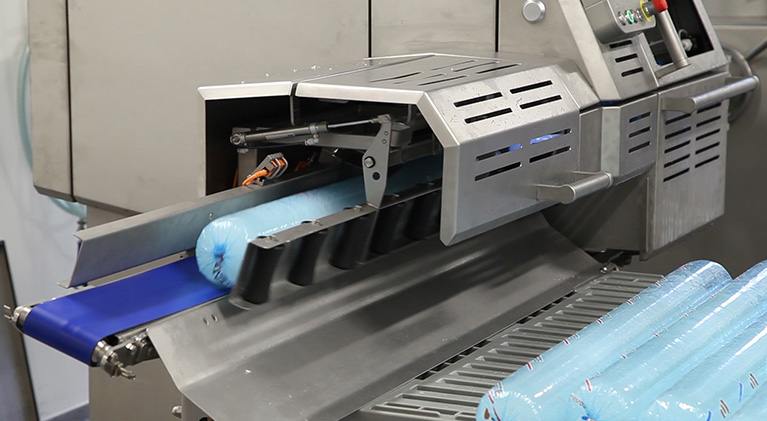

  • SV4800 side discharge configuration for customers with limited space or very long products
