TTSealH is a precision-engineered automatic system for packaging pumpable products, and it is compatible with the TT1512 and TT1815 automatic clippers. It runs cost effective roll stock, processing blank or printed films, in addition to most monolayer and multi-layer flat foils including poly, mylar, and aluminum coated films. Processors seeking greater throughput beyond the capabilities of bench or semi-automatic clippers realize improved productivity and lower packaging costs with TTSealH.

Features & Benefits

  • Handles film rolls with maximum diameter of 355mm
  • Accepts maximum flat film width of 400mm
  • Hot-seal capacity of 30 meters per minute
  • Produces chubs in calibers from 20mm to 120mm
  • Versatile roll stock delivers longer production runs and less downtime
  • Changeover in 10 minutes or less for trained operator
  • Single operator reduces labor costs
  • Durable stainless steel / non-corrosive materials construction
  • Complies with USDA and CE standards
  • JBT TIPPER TIE PRoCARE® available

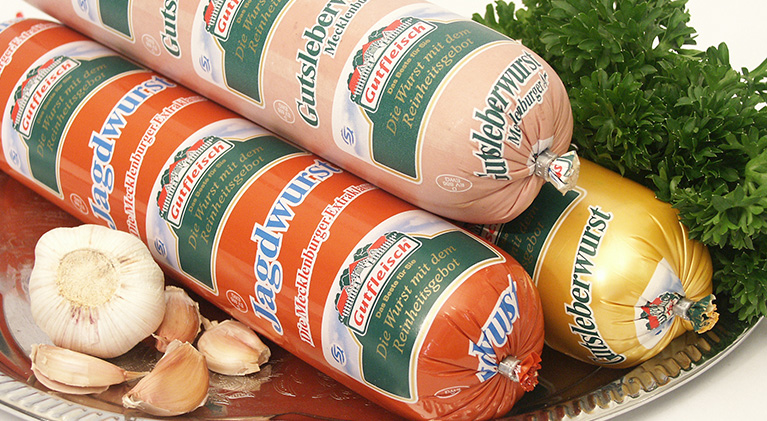

  • Applications – sausage, deli meats, ham, fresh ground meats, non-meat proteins, fresh ground fish, surimi/sausage paste, raw/frozen/refrigerated pet food, pumpable cheese, soup, sauce, ground fruits/vegetables
  • Integrated buffer control allows TTSealH to start with or without a film buffer

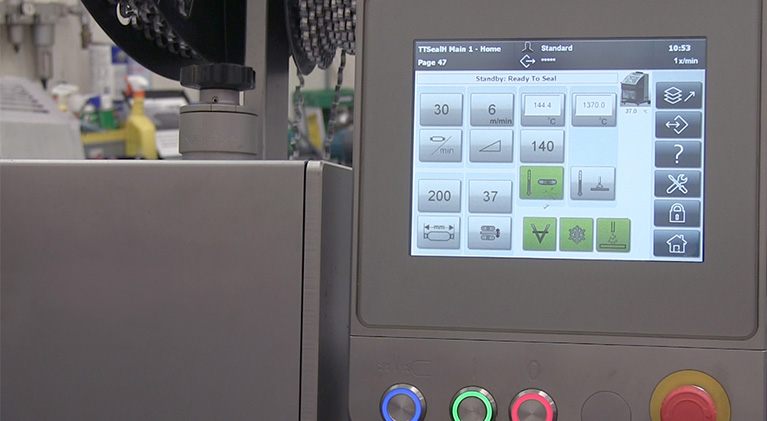

  • Advanced touch screen controls enable single-point control of both heat sealer and clipper
  • Operating system quickly recalls hundreds of recipes and minimizes downtime through graphical error display that localizes error for fast solution
  • Integrated safety control system monitors process and stops line in event of machine error
  • Hygienic and ergonomic design ensures fast cleaning and maintenance

Options & Models

  • Ink-jet coding system
