Our Forced Circulation Evaporator is specifically designed to obtain high quality tomato and fruit paste. The unit can process super-hotbreak products that are highly viscous and hard to process. It utilizes one series of multiple effect evaporators, each effect includes: a vertical tube-nest, a liquid vapor separation chamber and a recirculation pump. The vertical tube nests, in effect, are tube-in-shell heat exchangers with upward forced flow recirculation.
Features & Benefits
Capable of operating more than 45 days without downtime
Start-up and shut-down controlled by PC/PLC system
Low temperature reduces damages due to overcooking
Minimized risk of burning given that the heat exchanger is consistently wet
Capacity to process super-hot break products that are highly viscous and difficult to work with
We offer a wide range of traditional fillers for products including peas, milk, juices, tuna, jams, as well as baby food. Whether your product is low or high viscosity, liquid or solid, we have the right filler for you.
JBT’s aseptic fillers can transform your raw materials into a variety of products, including soups, creams, and other dairy products and dairy alternatives.

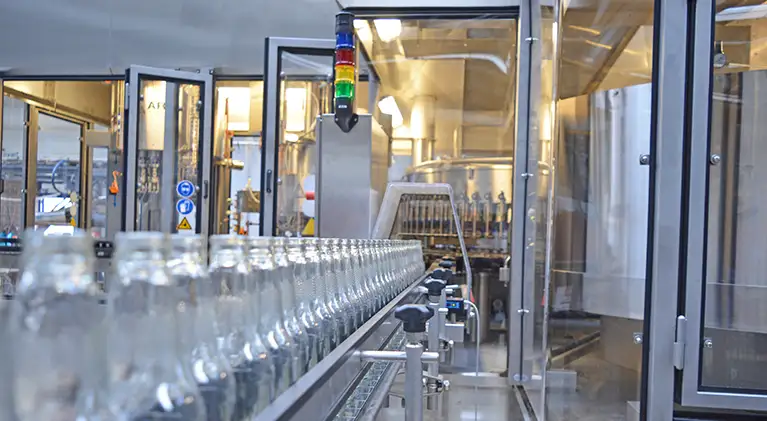

From low viscous products without particles to high viscous products with particles, and either cold or hot fills, our rotary fillers deliver unrivaled product versatility and consistent quality.
Transform your raw materials into a variety of products including juices, purees, concentrates, as well as products containing fruit pieces and pulp. Our equipment can also process low-acid foods, such as creams or soups.
Designed to fill fluids, concentrates and particulate products, our aseptic fillers provide: “steam only” sterilization of the filler head(s), complete sanitation by an automatic clean-in-place system and without chemicals or sterile gasses used. High production speed achieved by a newly designed head system. The aseptic filling chamber which can be opened without losing asepticity. Versatility and reliability are improved by meeting various packing standards with different products and the use of a fully PLC controlled self-diagnostic operational mode.
Features & Benefits
Lower labor costs
Ideal to fill various size bags
Processes products with pH <4.5
Drums are set up in line on a conveyor
Single head and twin head versions available
Details
Operates with 10-220 liters (5-60 gallons) pre-sterilized bags
Filling weight accuracy and high production speed (30-60 bags/hour)
Designed to fill fluids, concentrates and particulate products, our aseptic fillers provide: “steam only” sterilization of the filler head(s), complete sanitation by an automatic clean-in-place system and without chemicals or sterile gasses used. High production speed achieved by a newly designed head system. The aseptic filling chamber which can be opened without losing asepticity. Versatility and reliability are improved by meeting various packing standards with different products and the use of a fully PLC controlled self-diagnostic operational mode.
Features & Benefits
Four drums on pallet filling mode
Processes products with pH <4.5
Single head, twin head, and triple head versions available
Details
Working speeds: 5-12 bags/hour with single head, and 30-60 bags/hour with triple head
Operates with 220 liters (60 gallons) or 1,200 liters (300 gallons) pre-sterilized bags
Our AsepTec® linear aseptic filler is unique, standing out by the range of products and bottles (HDPE, PP, PET) it can handle, its high speed, its reliability and its flexibility.
The AsepTec filler was designed, from the ground up, to provide carefully controlled and verifiable filling conditions and to meet the strict requirements of the validation-by-design concept. By identifying the factors which reduce the reliability and sterile conditions of conventional fillers, we avoided them in our new design–thus creating a new generation of aseptic filler.
Standard capacities are 12,000 BPH, 18,000 BPH, 24,000 BPH, and 30,000 BPH.
Features & Benefits
Efficient and reliable
Effective decontamination
Unique air management system
Precise filling
Low utility consumption
Sophisticated user interface and control system
Possibility to change between different container shapes, sizes, and product in less than 30 minutes without breaking sterility
Can fill particulates up to 9 mm x 9 mm x 9 mm (0.35″ x 0.35″ x 0.35″)
Can seal bottle with foil seal or aseptic screw cap
Details
AsepTec fillers can handle high and low viscosity products and even products containing solids, therefore, a single filler can handle your full product range.
Our FranRica ABF1200 Aseptic Bag Filler model is designed to provide the highest possible level of sterility and productivity for filling bulk aseptic bag-in-box and bag-in-drum containers.Originally conceived to eliminate frequent spoilage events encountered by the California tomato industry, the ABF1200 is now proven worldwide as the gold standard for aseptic filling.Key to the success of the technology is the automatic heat seal fitment system which virtually eliminates the possibility of post filling contamination and spoilage.
Features & Benefits
High speed filling of 300 gallon bins or 55 gallon drums
Fills up to 20 bins per hour
Chemical free, leading to cost efficiency
Proven ability to maintain sterility for up to 100 days
Hydraulic actuation allows fast and automated operation
Heat seal fitment is conceived to eliminate spoilage and is tamper-proof
Steam barrier on all product handling areas to eliminate reliance on positive product pressure
Designed to provide the highest possible level of sterility and productivity for filling bulk aseptic bag-in-box and bag-in-drum containers
Details
The FranRica ABF1200 Aseptic Bag Filler can fill a wide range of products such as:
