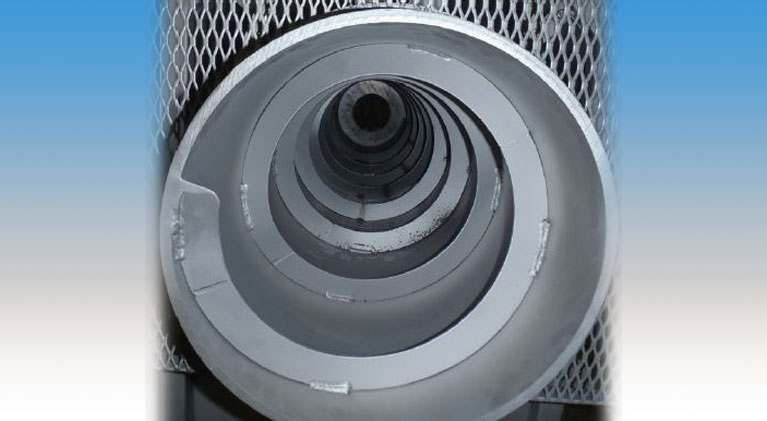

Our Prime DFS-Series De-Watering Screens are horizontally mounted, internally fed stainless steel wedge wire drums that effectively remove process water from various solid materials. Our most common separator applications are for skin and offal, but we also design systems for other food industries. Various drum diameters are available up to 36 inches (91.5 cm) I.D., with lengths of up to 10 feet (304.8 cm).

Features & Benefits

  • Effectively removes process water from solids
  • High-performing and dependable wedge wire design
  • Custom screen openings available for various applications
  • Collect solids for sales or disposal
  • Cost-effective solution for de-watering
  • Proven design offers time-tested, consistent results


  • Electrical Requirements up to 20 -inch diameter: (1) 3/4 hp motor 208/230/406V, 3 ph, 60 Hz
  • Electrical Requirements more than 20-inch diameter: (1) 2 hp motor, 208/230/460V, 3 ph, 60 Hz

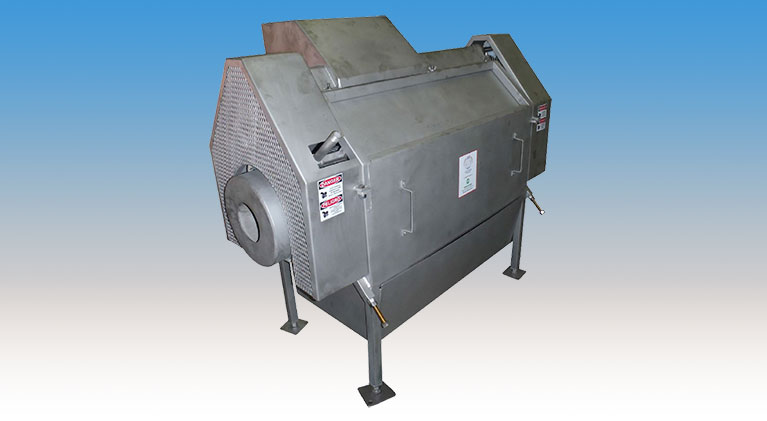

  • Net Weight: Pictured: Std. 12 I.D. X 3 L screen: 400 lbs. (181 kg)
