Our extremely flexible UCF110 and UCF210 Screw Finishers work to efficiently separate liquid and solid materials by means of filtration. Incoming product is moved along the finishers via continuous screw. With our models, you maximize all sanitation procedures, while also reducing floor space. UCF110 and UCF210 Screw Finishers are ready for a full range of citrus processing, including juice finishing (separating juice from pulp), oil finishing (separating frit from the oil: water emulsion), recovery of soluble solids (pulp or core wash) core wash and pulp packaging.
Features & Benefits
Continuous process with minimal intervention from the operator
Use of centrifugal force with rotating screw makes the process very efficient and simple
Very flexible; several speed and pressure options dependent on the chosen juice quality specifications
Maximum sanitation and reduced floor space
Higher efficiency resulting in the highest yield in the industry
Automated screen cleaning and easy access to valves and gauges for maintenance
Reduced down time due to our unique pneumatically-actuated dual spray ring system
Our READYGo Vegetable/Fruit Processing Skid integrates a series of primary processing steps including conveying, size reduction and heating operations on a single, compact stainless steel frame.
Features & Benefits
Continuous processing of fruit and vegetables
Hygienically designed to be easily cleanable
Capable of Clean-in-Place with appropriate CIP system
All stainless and food grade polymer food-contact surfaces
Control panel with variable frequency drives for speed control for ease of electrical installation
Integrated hygienic product pump to pump juice to downstream processes
Optionally mounted on casters for easy movement
Can be configured to use JBT’s FTE turbo extractor for production of viscous juices and purees for smoothies
Details
JBT process skids are easily installed as all the relevant piping and electrical connections are pre-installed and pre-tested, making it ideal for product testing at any location
The READYGo FVP skid is ready for iOPS®. The control panel is preconfigured for access to JBT’s iOPS data system for cloud-based reporting. Please visit the iOPS web page for more information.
Our Quick Fiber Device stands as a valuable laboratory apparatus for every citrus juice operation, designed to consistently produce screened pulp and Quick Fiber determinations. The device takes the guesswork out of testing for the amount of pulp particles in juice or testing the relative dryness of finisher pomace.
Features & Benefits
Quiet process
Precise results
Convenient to operate
Easy to clean and operate
Full recovery of liquid is possible
Details
Includes a timer, which can be conveniently placed on the wall
Vibration-free operation accomplished by a heavy cast base and a counterbalanced eccentric
The quick fiber device operates on juices with fibers such as oranges, lemons, grapefruit, etc.
The revolutionary, patented PulpView laboratory pulp saturation analyzer replaces the quick fiber shaker commonly used to determine the dryness of finished citrus pulp. The PulpView analyzer measures the dryness of saturated pulp in the range of 300 g/l to 800 g/l and replaces a variety of shaking screen tests currently used in the citrus industry. All PulpView analyzers can be calibrated to accurately reflect the dryness of different kinds of pulp and different kinds of finishing processes.
Features & Benefits
Rapid analysis results in significant labor savings per season in comparison to traditional quick fiber and packaged pulp tests
Improved accuracy and repeatability over quick fiber testing
Reduces variability of packaged pulp concentration to ± 50 g/l
Electronic display of the Saturation Index reduces errors in transcribing results
No moving parts, easy to use, and several usage options
Maintenance costs are reduced as there are no screens to replace or maintenance required for the device
Details
The PulpView analyzer has a variety of uses in citrus processing including:
Determining quick fiber for finisher adjustment
Regulating final aseptically packaged pulp concentration
Controlling pulp pasteurizers to determine final frozen packaged pulp concentration
Our Tenderometer is designed to give high precision outcomes in the comparative measurement of the hardness and ripeness of fresh or scalded products, particularly peas, beans, broad beans, and legumes; ripeness is also used for legume price determination at source.
Features & Benefits
High working capacity: up to 40 tests/hour
Simple and quick calibration values restoration
Full automation permits high accuracy processes
Double CIP system is controlled by microprocessor
Arithmetic mean function for up to the last 20 outcomes
Unidirectional RS 232 interface for data transmission to a remote computer
Details
Our Tenderometer measures the hardness and ripeness of fresh and scalded products such as peas, beans, broad beans, and legumes

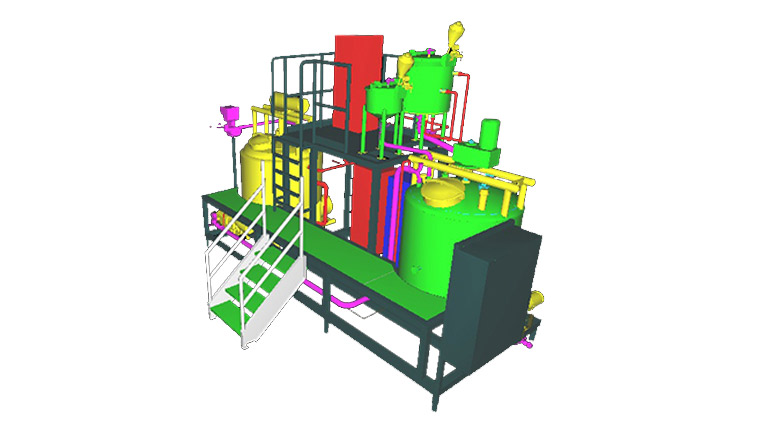

The process design engineers at A&B Process Systems offer several services including industrial process design, hygienic process design, Clean-In-Place (CIP) system design and circuitry, and piping design.
We offer several services including high purity process design, Clean-in-Place (CIP) system design and circuitry, and piping design. Our process design engineers will work with you to evaluate your unique needs, and assume responsibility for the complex details of multi-phase projects, including assessment of existing process systems or equipment, system design, automation, documentation to support validation and one-on-one start-up training.
Details
Material lists that simplify the procurement process
The process design engineers at A&B Process Systems offer several services including industrial process design, hygienic process design, Clean-in-Place (CIP) system design and circuitry and piping design. Our process design engineers will work with you to evaluate your unique needs, and assume responsibility for the complex details of multi-phase projects, including assessment of existing process systems or equipment, system design, automation, documentation to support validation and one-on-one start-up training.
Features & Benefits
Material lists that simplify the procurement process
Detailed proposal summaries
Higher quality inert purge gas
Quality of completed welds
